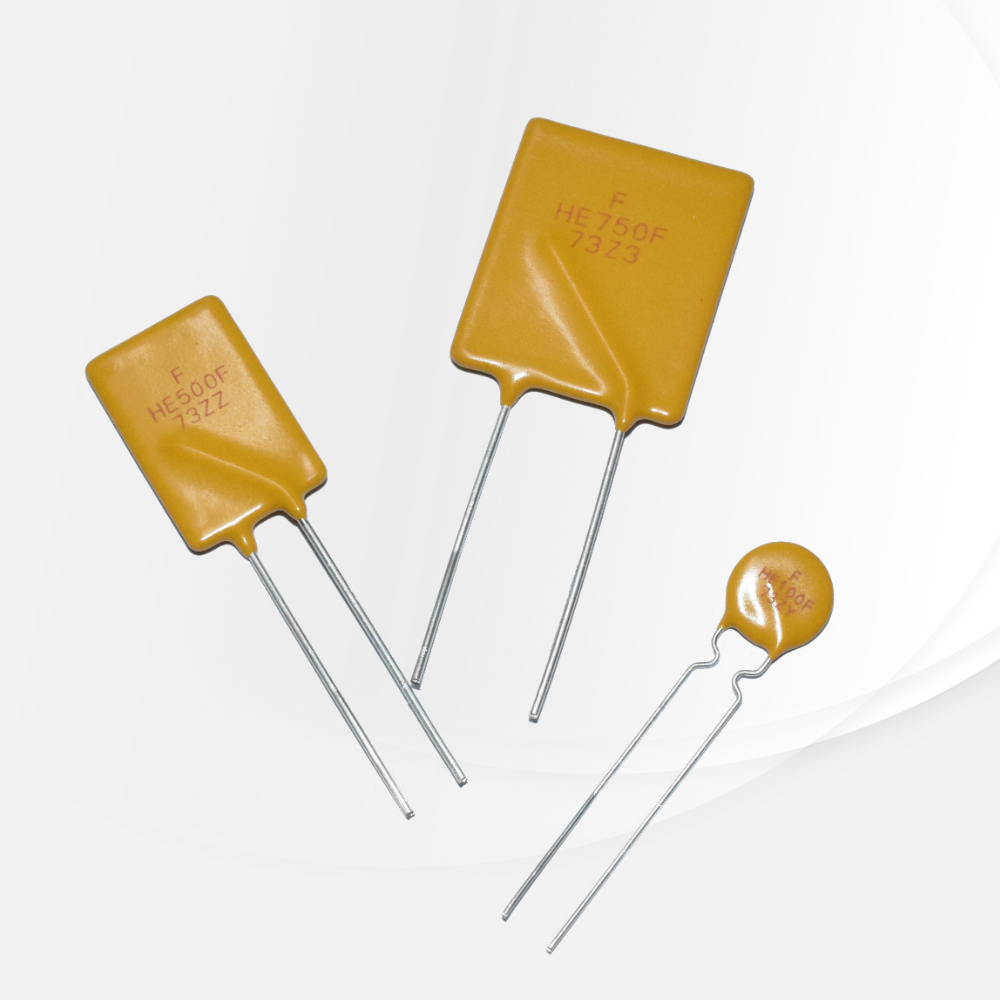

FHE Series - Radial Leaded PTC
|
|
.png)
Application
Wide variety of electronic equipment
Product Features
Very low resistance, very high hold current, solid state, radial leaded product ideal for up to 32 Vdc and operating temperatures up to 125℃
Operation Current
0.50A~10.00A
Maximum Voltage
32V
Temperature Range
-40℃ to 125℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50004084 |
Electrical Characteristics (23°C)
|
Part
Number
|
Hold
Current |
Trip
Current |
Max.
Time to Trip
|
Max
Current |
Rated
Voltage |
Typ.
Power
|
Resistance
|
|
|
IH, A
|
IT, A
|
@ 5 x IH, s
|
I MAX, A
|
V Max, V DC
|
V Max, V DC
|
Rmin
|
R1max
|
|
| FHE050-32F |
0.5
|
1.0
|
3.0
|
100
|
32
|
0.9
|
0.3500
|
1.1000
|
| FHE070-32F |
0.7
|
1.4
|
3.2
|
100
|
32
|
1.4
|
0.2300
|
0.8000
|
| FHE100-32F |
1.0
|
1.9
|
6.2
|
100
|
32
|
1.4
|
0.1500
|
0.4300
|
| FHE200-32F |
2.0
|
4.0
|
5.5
|
100
|
32
|
2.2
|
0.0650
|
0.2500
|
| FHE300-32F |
3.0
|
6.0
|
5.0
|
100
|
32
|
3.2
|
0.0350
|
0.1100
|
| FHE500-32F |
5.0
|
10.0
|
9.0
|
100
|
32
|
5.3
|
0.0150
|
0.0400
|
| FHE750-32F |
7.5
|
15.0
|
13.0
|
100
|
32
|
6.5
|
0.0074
|
0.0230
|
| FHE1000-32F |
10.0
|
20.0
|
15.0
|
100
|
32
|
7.0
|
0.0060
|
0.0160
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
125℃
|
|
Derating%
|
143%
|
130%
|
115%
|
100%
|
92%
|
88%
|
80%
|
72%
|
65%
|
55%
|
28%
|
Product Dimension
Product Fig
.bmp) |
Fig1 Lead Size: 24AWG Ø 0.51 mm |
 |
Fig 2 Lead Size: 24AWG Ø 0.51 mm |
.png) |
Fig 3 Lead Size: 20 AWG Ø 0.81 mm |
|
Fig 4 Lead Size: 18 AWG Ø 1.0 mm |
|
Part Number
|
Fig.
|
A
|
B
|
C
|
D
|
E
|
|
Max
|
Max
|
Typ
|
Min
|
Max
|
||
| FHE050-32F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.3
|
| FHE070-32F |
2
|
6.9
|
10.8
|
5.1
|
7.6
|
3.0
|
| FHE100-32F |
1
|
9.7
|
13.6
|
5.1
|
7.6
|
3.0
|
| FHE200-32F |
3
|
9.5
|
13.5
|
5.1
|
7.6
|
3.0
|
| FHE300-32F |
3
|
10.2
|
15.5
|
5.1
|
7.6
|
3.8
|
| FHE500-32F |
3
|
14.0
|
24.1
|
5.1
|
7.6
|
3.8
|
| FHE750-32F |
3
|
21.1
|
24.9
|
10.2
|
7.6
|
3.8
|
| FHE1000-32F |
4
|
23.5
|
27.9
|
10.2
|
7.6
|
4.0
|
