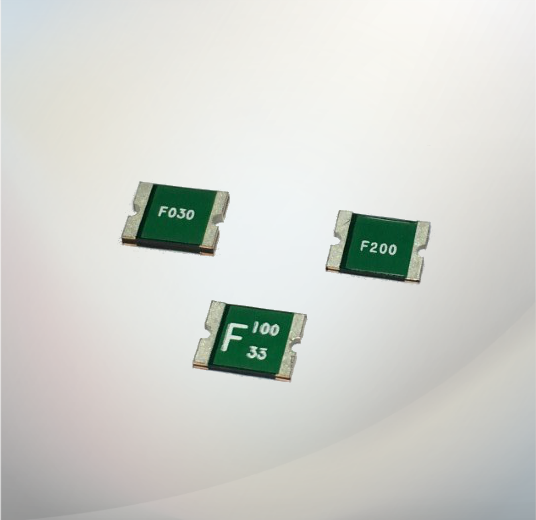

FSMD2016 Series
|
|
.png)
Application
All high-density boards
Feature
Small surface mount, Solid state Faster time to trip than standard SMD devices Lower resistance than standard SMD devices
Operation Current
0.30A~2.00A
Maximum Voltage
6V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
Electrical Characteristics
|
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FSMD030-2016-R |
0.30
|
0.60
|
60
|
100
|
1.4
|
1.5
|
3.0
|
0.500
|
2.300
|
| FSMD050-2016R |
0.50
|
1.10
|
60
|
100
|
1.4
|
2.5
|
5.0
|
0.450
|
1.000
|
| FSMD100-2016-R |
1.00
|
2.20
|
15
|
100
|
1.4
|
8.00
|
0.5
|
0.130
|
0.400
|
| FSMD100-33-2016-R |
1.00
|
2.20
|
33
|
100
|
1.4
|
8.00
|
0.5
|
0.100
|
0.400
|
| FSMD150-2016-R |
1.50
|
3.00
|
15
|
100
|
1.4
|
8.00
|
0.8
|
0.070
|
0.180
|
| FSMD200-2016-R |
2.00
|
4.20
|
6
|
100
|
1.4
|
8.00
|
3.0
|
0.048
|
0.100
|
Product Dimension
|
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
| FSMD030-2016-R |
4.72
|
5.44
|
3.70
|
4.43
|
0.40
|
1.15
|
0.30
|
1.50
|
0.25
|
0.65
|
| FSMD050-2016R |
4.72
|
5.44
|
3.70
|
4.43
|
0.40
|
1.70
|
0.30
|
1.50
|
0.25
|
0.65
|
| FSMD100-2016-R |
4.72
|
5.44
|
3.70
|
4.43
|
0.30
|
0.70
|
0.30
|
1.50
|
0.25
|
0.65
|
| FSMD100-33-2016-R |
4.72
|
5.44
|
3.70
|
4.43
|
0.30
|
0.70
|
0.30
|
1.50
|
0.25
|
0.65
|
| FSMD150-2016-R |
4.72
|
5.44
|
3.70
|
4.43
|
0.25
|
0.65
|
0.30
|
1.50
|
0.25
|
0.65
|
| FSMD200-2016-R |
4.72
|
5.44
|
3.70
|
4.43
|
0.25
|
0.55
|
0.30
|
1.50
|
0.25
|
0.65
|
