Low Rho FSMD1206 Series
|
|
.png)
Application
All high-density boards
Feature
Small surface mountable, Solid state, Faster time to trip than standard SMD devices, Lower resistance than standard SMD devices
Operation Current
0.5~6.0A
Maximum Voltage
6V
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50090556 |
Electrical Characteristics
|
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FSMD050-1206RZ |
0.50
|
1.50
|
6
|
100
|
0.8
|
8.0
|
0.20
|
0.025
|
0.200
|
| FSMD075-1206RZ |
0.75
|
1.80
|
6
|
100
|
0.8
|
8.0
|
0.30
|
0.018
|
0.180
|
| FSMD110-1206RZ |
1.10
|
2.20
|
6
|
100
|
0.8
|
8.0
|
0.30
|
0.015
|
0.100
|
| FSMD150-1206RZ |
1.50
|
3.00
|
6
|
100
|
0.8
|
8.0
|
0.30
|
0.010
|
0.065
|
| FSMD175-1206RZ |
1.75
|
3.50
|
6
|
100
|
0.8
|
8.0
|
0.40
|
0.005
|
0.030
|
| FSMD200-1206RZ |
2.00
|
4.00
|
6
|
100
|
0.8
|
8.0
|
0.50
|
0.005
|
0.025
|
| FSMD260-1206RZ |
2.60
|
5.20
|
6
|
100
|
0.8
|
8.0
|
4.00
|
0.003
|
0.025
|
| FSMD300-1206RZ |
3.00
|
6.00
|
6
|
100
|
0.8
|
8.0
|
4.00
|
0.003
|
0.020
|
| FSMD350-1206RZ |
3.50
|
7.00
|
6
|
100
|
0.8
|
8.0
|
5.00
|
0.003
|
0.018
|
| FSMD380-1206RZ |
3.80
|
8.00
|
6
|
100
|
0.8
|
8.0
|
5.00
|
0.002
|
0.014
|
| FSMD450-1206RZ |
4.50
|
9.00
|
6
|
100
|
0.8
|
22.5
|
2.00
|
0.001
|
0.014
|
| FSMD500-1206RZ |
5.00
|
10.00
|
6
|
100
|
0.8
|
25.0
|
5.00
|
0.002
|
0.010
|
| FSMD600-1206RZ |
6.00
|
12.00
|
6
|
100
|
1.0
|
30.0
|
2.00
|
0.001
|
0.008
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
145%
|
130%
|
115%
|
100%
|
92%
|
84%
|
77%
|
69%
|
61%
|
50%
|

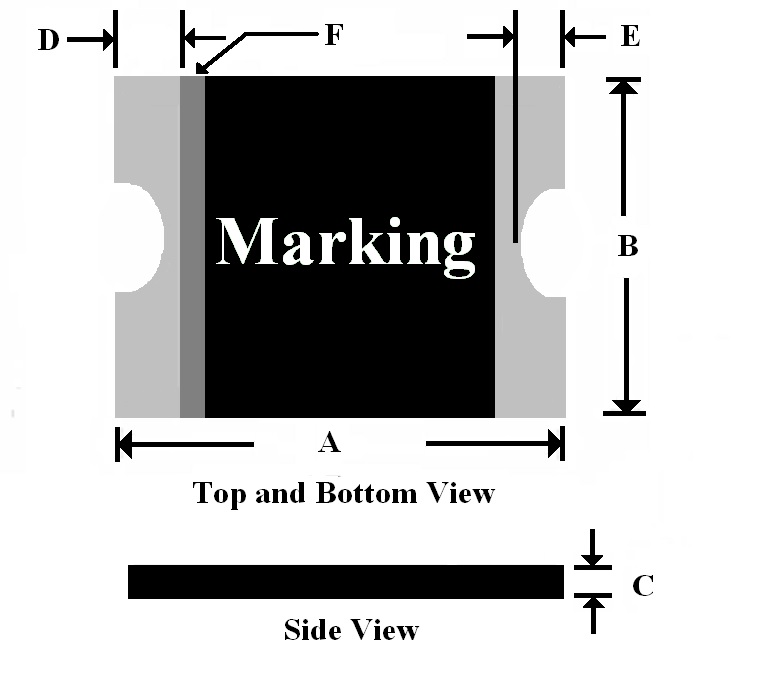

Product Dimension
|
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
| FSMD050-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD075-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD110-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD150-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD175-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD200-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD260-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD300-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.30
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD350-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD380-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD450-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD500-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD600-1206RZ |
3.00
|
3.50
|
1.50
|
1.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
